handmicrofoon , 12V snoer en manual

in nette staat

Vaste PRIJS!!!

3 mnd Garantie

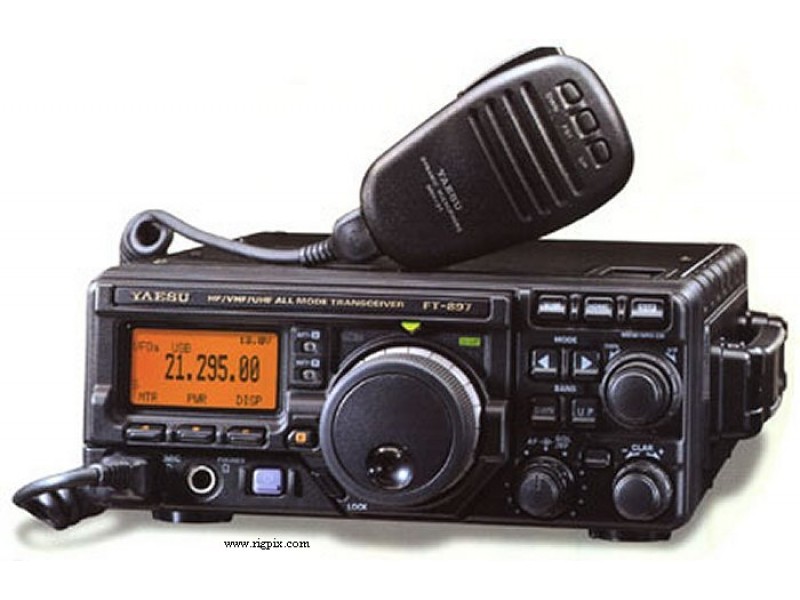

Type:Amateur HF/VHF/UHF transceiver Frequency range:TX: 10-160 m + WARC and 60 m/6 m/2 m/70 cm
RX: 0.1-56 / 76-108 / 118-164 / 420-470 MHz Mode:TX: AM/FM/SSB/CW
RX: AM/FM/WFM/SSB/CW RF Power output:FM/SSB/CW: 100/100/50/20 W
AM: 25/25/12.5/5 W Sensitivity:SSB/CW (10 dB S/N): 0.2 uV (1.8-30 MHz), 0.125 uV (50-440 MHz)
AM (10 dB S/N): 32 uV (0.1-1.8 MHz), 2 uV (1.8-28 MHz), 1 uV (50-54 MHz)
FM (12 dB SINAD): 0.5 uV (28-30 MHz), 0.2 uV (50-440 MHz) Selectivity:SSB/CW: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
AM: 6 KHz (-6 dB), 20 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
NFM: 9 KHz (-6 dB), 25 KHz (-60 dB)
Optional filters will increase selectivity Image rejection:70 dB (HF/6 m), 60 dB (2/70 cm) Voltage:13.8 VDC +/- 15% Current drain:RX: 0.6-1 A
TX: Max 22 A Impedance:50 ohms, SO-239 + N Dimensions (W*H*D):200*80*262 mm Weight:3.9 Kg Manufactured:Japan, 2004-2014 (Discontinued) Other:200 memories. 9K6 packet ready.
DSP, DCS, CTCSS, ARTS & RS-232. Beacon function
TXCO is included in this updated version. Related documents:
