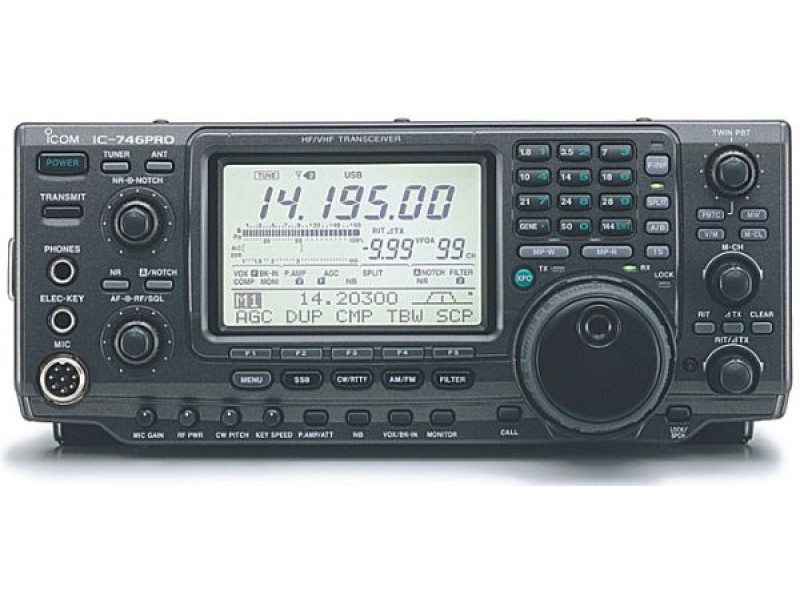

Type:Amateur HF/VHF transceiver Frequency range:TX: 10-160 m + WARC / 50-54 / 144-148 MHz
RX: 0.03-60 / 108-174 MHz Tuning steps:Down to 1 Hz Mode:AM/FM/SSB/CW/RTTY Channels/memory management:99 regular
2 scan edges
1 call
9 character alpha tags Repeater shift/offset:±0-4 MHz in 1 KHz steps Power supply:13.8 VDC ±15% Current drain/power consumption:RX: 1.8-2 A
TX: Max 20 A Antenna impedance/connector:50 ohms / 3*SO-239 Dimensions (W*H*D):287*120*316 mm (11.3*4.72*12.44") Weight:8.9 Kg (19.62 lbs) Other features:CTCSS/PL. Built-in auto ATU. Built-in keyer. CI-V.
Simple spectrum scope. VOX. DSP.



RECEIVER SECTION Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz Sensitivity:AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-30 MHz: 2 uV (Preamp 1 on)
6 m/2 m: 1 uV (Preamp on)
FM (12 dB SINAD)
28-30 MHz: 0.5 uV (Preamp 1 on)
6 m: 0.25 uV (Preamp 2 on)
2 m: 0.18 uV (Preamp on)
AM/SSB/CW/RTTY (10 dB S/N)
1.8-30 MHz: 0.16 uV (Preamp 1 on)
6 m: 0.13 uV (Preamp 2 on)
2 m: 0.11 uV (Preamp on) Selectivity:AM/FM-N
>9 KHz (-6 dB), <20 KHz (-60 dB)
FM
>12 KHz (-6 dB), <30 KHz (-50 dB)
SSB/CW/RTTY
>2.1 KHz (-6 dB), <4 KHz (-60 dB) Image rejection:HF/6 m: 70 dB
2 m: 60 dB AF output power/speaker:2 W at ?% distortion / 8 ohms External speaker connector:3.5 mm, 4-8 ohms



TRANSMITTER SECTION RF output power: AM: 5-40 W
FM/SSB/CW: 5-100 W Modulation system:AM/SSB: Balanced modulation
FM: Variable reactance modulation Max FM deviation:Max ±5 KHz Spurious emissions:HF: Less than -50 dB
VHF: Less than -60 dB Microphone impedance/connector:600 ohms / 8-pin
