- 12.5, 25, 28, 37, 50, 75,100,150,200,300,450,600 Ohm systems
Frequency range
- 0.1 to 3000 MHz
Frequency entry
- 1 kHz
SWR measurement range
- 1 to 10 in chart modes
- 1 to 100 in numerical modes
R and X range
- 0…2000, -2000…2000
Display modes
- Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé)
- Optional open-short-load calibration
- R, X chart
- Return loss chart
- Smith chart
- SWR at single or multiple frequencies
- SWR chart
- SWR, return loss, R, X, Z, L, C at single frequency
- TDR chart (Time Domain Reflectometer)
- User OSL: 10 profiles available
RF output
- Connector type: N
- Output power: -10 dBm (at a load of 50 ohms)
- Output signal shape: square
Power
- Max. 5 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
- Three 1.2V Ni-MH batteries, type AA
- Three 3.7V LiPo batteries, 14200
- When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
- 6x3 keys on the water-proof keypad
- 800×480 color Blanview® display
- Bluetooth Specification v.4.2, LE
- Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German
- USB connection to a personal computer
Operating temperature
- 0…40 °C (32…104 °F)
Weight
- 442 g (15.6 oz)
Dimensions
- 100 × 230 × 55 mm, (4 × 9 × 2 in)
Note
- Specifications are subject to change without notice
- Мade in Ukraine
GTIN-13
- 4820185420372

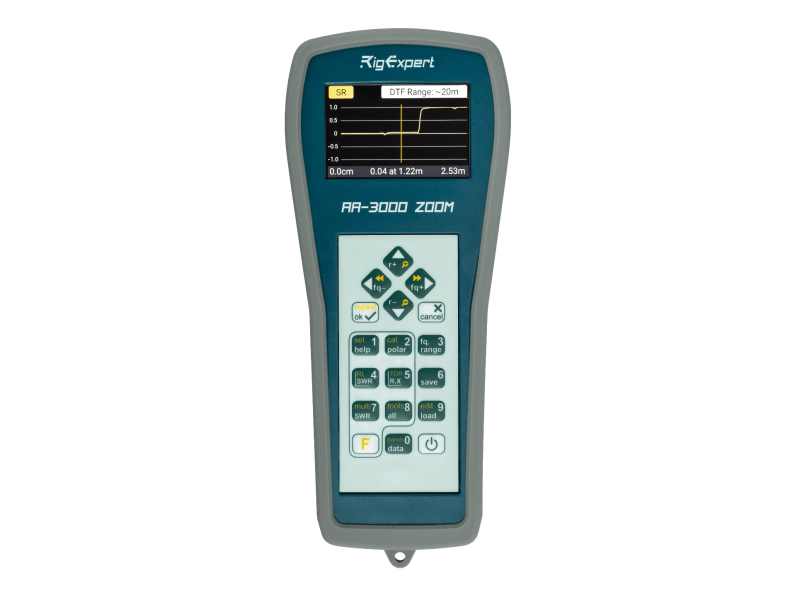

AA-3000 zoom
- Productcode: AA-3000 ZOOM
- Beschikbaar: Op voorraad
-
€ 1.325,00
- Excl. BTW: € 1.095,04
