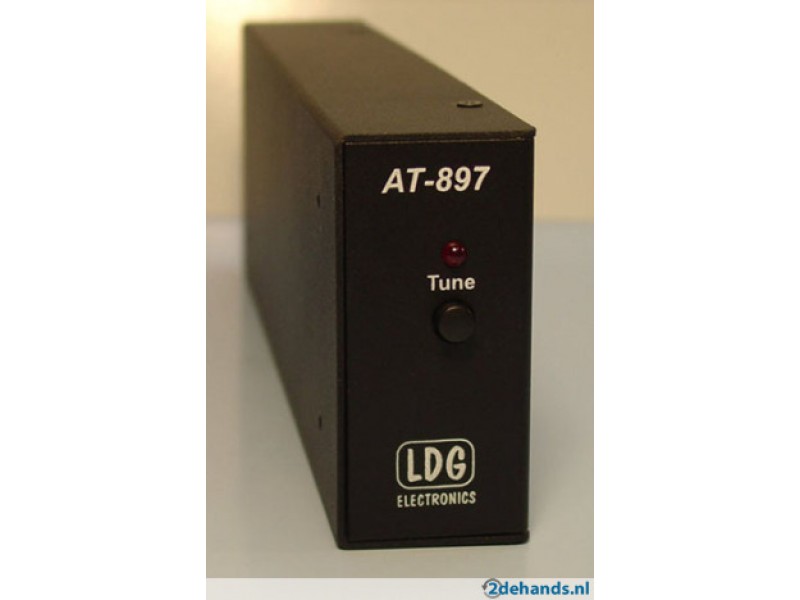

Een nog nette ant. tuner

Vaste Prijs!!!

incl. alle aansluitkabels

• Microprocessor controlled
• 2000 fast memories arranged by frequency

• Switched L tuning network
• Mounts on the side of the Yaesu FT-897 with four M3-0.5x10 screws (included)
• Dual function tune control button
• Continuous coverage 1.8 to 54 MHz
• Power rating HF: 0.1 to 100 Watts, 30W on PSK
• Latching Relays
• CAT control at 4800 baud with extra CAT Port
• Tuning time: 1 to 7 seconds, 4 average
• Antenna impedance: 6 to 800 Ohms (Approximately up to 10:1 SWR, 3:1 on 6M)
• Tunes nearly any coax fed antenna. Use optional Balun for long wires.
• Power requirements: 11 to 14 volts DC @ 300 milliamps during tune
• Operating voltage supplied via the CAT Port (cable supplied with tuner)
• Enclosure sizes: 11.5D x 3.25H x 1.5W (measured in inches)
