ziet er netjes uit kompleet met doos

Incl. TCXO!!!!!!! voor de stabilteit an deze transceiver.

antenne  met manual lader en 12Vsnoer.!!!!

Vaste Prijs!!

GENERAL Type:Amateur HF/VHF/UHF transceiver Frequency range:TX: 10-160 m + WARC/ 50-54 / 144-146 / 430-440 MHz (Europe)
TX: 10-160 m + WARC and 60 m / 50-54 / 144-148 / 440-450 MHz (USA)
RX: 0.1-56 / 76-154 / 420-470 MHz Tuning steps:AM/FM: Minimum 100 Hz
SSB/CW: Minimum 10 Hz Mode:RX: AM/FM/NFM/WFM/SSB/CW
TX: AM/FM/NFM/SSB/CW Memory channels:200 regular (with alpha tags) + home channels and band-limit memories Power supply:9.6 V NiMH or NiCd battery pack, 12 VDC (8*R6/AA batteries) or 8-16 VDC external Current drain/power consumption:RX: 250-450 mA
TX: Max 2 A Antenna impedance/connector:50 ohms / BNC on front and SO-239 on back Dimensions (W*H*D):135*38*165 mm Weight:1.17 Kg (with battery and antenna) Other features:CTCSS/PL. DCS. ARTS. VOX. Spectrum scope. Built-in keyer and
SWR-meter. 9K6 packet ready.



RECEIVER SECTION Receiver system:Double conversion superheterodyne (AM/FM/SSB/CW)
1st IF: 68.33 MHz
2nd IF: 455 KHz
Double conversion superheterodyne (WFM)
1st IF: 10.7 MHz
2nd IF: 455 KHz Sensitivity:AM (10 dB S/N)
0.5-1.8 MHz: 32 uV
1.8-30 MHz: 2 uV
50-54 MHz: 2 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.32 uV
144/440 MHz: 0.2 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
144/440 MHz: 0.125 uV Selectivity:AM: 6 KHz (-6 dB), 20 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
SSB/CW: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB) Image rejection:HF/6 m: 70 dB
2 m/70 cm: 60 dB AF output power/speaker:1 W at <10% distortion / 8 Ohms External speaker connector:3.5 mm, 4-16 Ohms



TRANSMITTER SECTION Modulation system:AM: Early stage, low level
FM: Variable reactance
SSB: Balanced modulator RF output power:Max 5 W (SSB/CW/FM) and 1.5 W (AM) @ 13.8 V DC
Max 2.5 W (SSB/CW/FM) and 0.7 W (AM) @ 9.6 V DC Max FM deviation:FM: ±5 KHz
NFM: ±2.5 KHz Spurious emissions:HF: Less than -50 dB
VHF/UHF: Less than -60 dB Microphone connector/impedance:8-pin modular / 600 ohms nominal (200 Ohms to 10 KOhms)

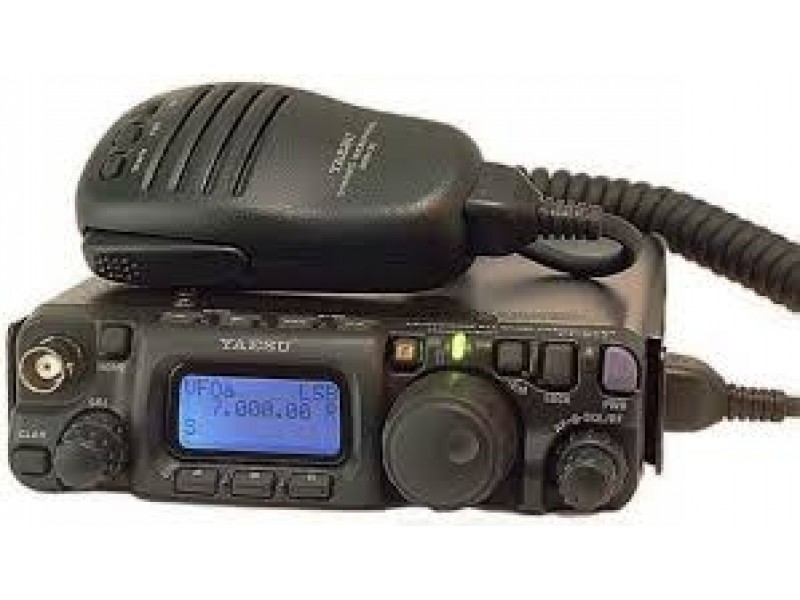

Yaesu FT-817 ND
