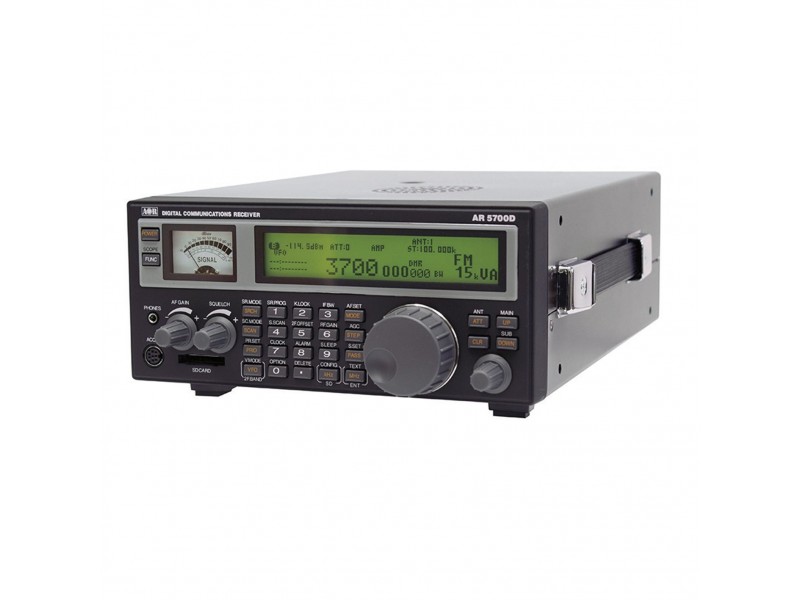

AR-5700D Professionele ontvanger

AOR zet de nieuwe norm met de AR-5700D in professionele radio- en spectrummonitoring.

- het frequentiebereik van 9 kHz -3700 MHz en uitstekende kenmerken van de AR-5001D

- het decoderen van digitale signalen van de AR-DV1

- en een 2 MHz brede I/Q gegevensuitvoer van de I/Q optie.

  • met ingebouwede digitale I/Q uitgang en digitale modes decoder
  • 9 kHz~3700 MHz analoge en digitale modus
  • 10 Digitale modes: TETRA, P25 (Phase 1+2), DMR, Mototrbo, dPMR, NXDN, D-CR, D-STAR, Alinco, Yaesu
  • Automatische detectie digitale modus tijdens scannen
  • Tot 2 MHz digital I/Q output.
Specificaties:
  • Frequency range   9 kHz-3.7 GHz Analogue & Digital modes
  • 10 Digital modes : TETRA,P25(Phase 1+2),DMR, Mototrbo,dPMR,NXDN,D-CR,D-STAR,Alinco,Yaesu.
  • Automatic detection of digital modes during scan and search.
  • Up to 2MHz wide digital I/Q output
  • Tuning steps 1Hz-999.999kHz



Analogue receive modes:

  • FM, FM-stereo, AM, synchronous AM, USB, LSB, CW, analogue I/Q, FM video.

Digital receive modes:

  • D-STAR / GMSK / AMBE DV mode only
  • YAESU / C4FM / AMBE+2 V/D narrow mode only
  • ALINCO / GMSK / AMBE EJ47 (F1E) mode only
  • D-CR / C4FM / AMBE+2
  • NXDN / C4FM / AMBE+2 6.25kHz mode only
  • P25 Phase 1 / C4FM / IMBE Conventional mode only
  • dPMR / C4FM / AMBE+2 Tier 1 only
  • DMR / C4FMx2 / AMBE+2 Tier 1 and Tier 2 only
  • TETRA direct mode (T-DM) / 1/4 shift QPSK / ACELP
  • TETRA traffic channel (T-TC) / 1/4 shift QPSK / ACELP (encrypted signals not supported)



  • Number of VFO's  - 5 -
  • Memory channels: 2000 (50 channels x 40 memory banks).
  • Banks customise from 5 to 95 channels.
  • Priority channel 1
  • Select memory channels 100 (via memory banks)
  • Search banks 40
  • Pass frequencies 1230 (30 per memory bank + 30 for VFO search)
  • Typical scanning speed 100 channels / steps per second (for analogue modes)
  • Temp range 0C+50C (32°F-122°F)Freq stability 0.1ppm (after 5 min. warm-up) or 0.01ppm with optional GPS unit.
  • Power requirements DC10.7V-16V (2.0A@12V)
  • Audio output >1.5W into 8Ohm load
  • Current consumption Stand-by: Approx. 200mA, Max. audio: Approx. 1.8A
  • Dimensions Approx. 304mm(D) x 220mm(W) x 97mm(H) (excluding projections)
  • Weight Approx. 5kg
  • Circuit type 9kHz-25MHz: Direct conversion 25MHz-3.7GHz: Double super heterodyne
  • Intermediate frequencies :- First: 321.95MHz / 412.05MHz Second: 45.05MHz
  • Demodulation method: Digital signal processing
  • IF filter bandwidths 200Hz, 500Hz, 1kHz, 3kHz, 6kHz, 15kHz, 30kHz, 100kHz, 200kHz (choice is mode dependent)
  • Automatically selected and non-changeable for digital modes.
 This is a wide-band professional design covering 9kHz - 3.7GHz. As well as all the normal analogue modes, it offers extensive digital decoding, including all the popular ham VHF modes. For the professional user and advanced listener, it offers the widest range of digital modes for any receiver in this class. Digital modes can be autodetected, making monitoring fast and effective. A full list of the many digital modes covered can be seen below. The dedicated AOR software adds spectrum display and full PC control.

 9kHz~3700MHz analog & digital modes.

MODES:

FM, FM-stereo, AM, synchronous AM, USB, LSB, CW, analog I/Q, FM video.

D-STAR / GMSK / AMBE DV mode only

YAESU / C4FM / AMBE+2 V/D narrow mode only

ALINCO / GMSK / AMBE EJ47 (F1E) mode only

D-CR / C4FM / AMBE+2

NXDN / C4FM / AMBE+2 6.25kHz mode only

P25 Phase 1 / C4FM / IMBE Conventional mode only

dPMR / C4FM / AMBE+2 Tier 1 only

DMR / C4FMx2 / AMBE+2 Tier 1 and Tier 2 only

TETRA direct mode (T-DM) / π/4 shift QPSK / ACELP

TETRA traffic channel (T-TC) / π/4 shift QPSK / ACELP


Mototrbo, dPMR, NXDN, D-CR, D-STAR, Alinco, Yaesu.


Automatic detection of digital modes during scan & search.

Up to 2MHz wide digital I/Q output.
