Extra kabel is 15,00 euro(zit standaard kenwood bij, kan niet omgewisseld worden!!!)


For use with the JCD-201M 8P and JCD-201 8P HF PROOF microphones.

Icom RJ-45 wiring:
1. DC
2. UP/DOWN
3. Input control
4. PTT
5. MIC GND
6. MIC
7. GND

For use with the JCD-201M 8P and JCD-201 8P HF PROOF microphones.

Yaesu RJ-45 wiring:
1. SW 2 (KEY CONTROL)
2. SW 1 (KEY CONTROL)
3. DC
4. GND
5. MIC
6. PTT

Kenwood RJ-45 wiring:
1. DOWN
2. Not connected
3. MIC
4. MIC GND
5. PTT
6. GND
7. DC
8. UP

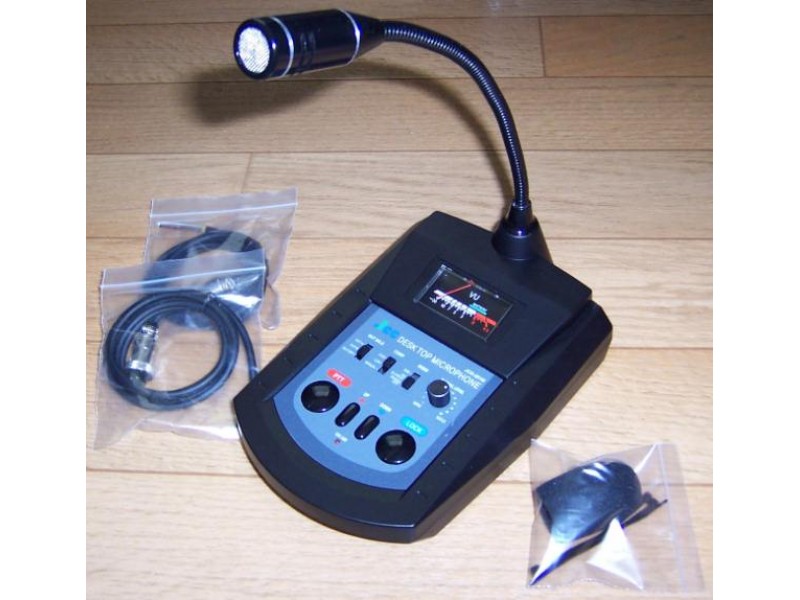

JCD-201M DESK DESK MICROPHONE 8P HF PROOF

Power microphone for Radio Amateur sets (HF proof till 100 Watts), with free adapter cable to standard Kenwood 8 pin

  • HF proof till 100 Watts
  • Two selectable output connectors 8 pin
  • Compressor level ‘high/low’ or ‘manual’
  • FM/SSB ‘power on’ / ‘power off’ switch
  • LOCK function
  • UP/DOWN function (not working on all transceivers)
  • ‘ON AIR’ led indicator
  • Clear VU level meter (battery check)
  • Electret Condenser microphone type
  • TX warning (alarm) after 2-3 minutes continues TX. Microphone will switch automatically back to RX
  • Connector for optional PTT foot pedal (not included)

    Connector wiring of the free ‘standard Kenwood 8-pin’ adapter cable:
    1. MIC
    2. PTT
    3. DOWN
    4. UP
    5. DC
    6. Not connected
    7. MIC GND
    8. GND

    Always check carefully if your transceiver is compatible with your version of the JCD-201M microphone. We are not responsible for any damage caused due wrong usage (or wiring) of the microphone to your microphone or transceiver.

    • Geef beoordeling

    Note: HTML-code wordt niet vertaald!
        Slecht           Goed

    JCD-201M TAFELMICR.

    • Model: JCD-201M
    • Beschikbaarheid: Op voorraad

    • € 125,00

    • Excl. BTW: € 103,31
