Nissei DG-503
• Frequency Range: 1.6 - 60 and 125 - 525 MHz
• SWR Sensitivity: Minimum 1 Watt
• Power Range: 0 - 200 Watt
• Maximum Power Rating: 200 Watt
• Measurement Functions: Forward RF Power, Reflected RF Power, SWR
• Connectors: UHF-Female ( SO-239 )
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• After the gratifying
success of the digital wattmeters RS-50 / RS-70, NISSEI has inserted
this new model DG-503, base station version, for powers up to 200 Watts
with an accuracy of 5% (minimum power applicable for display the SWR
1Watt)

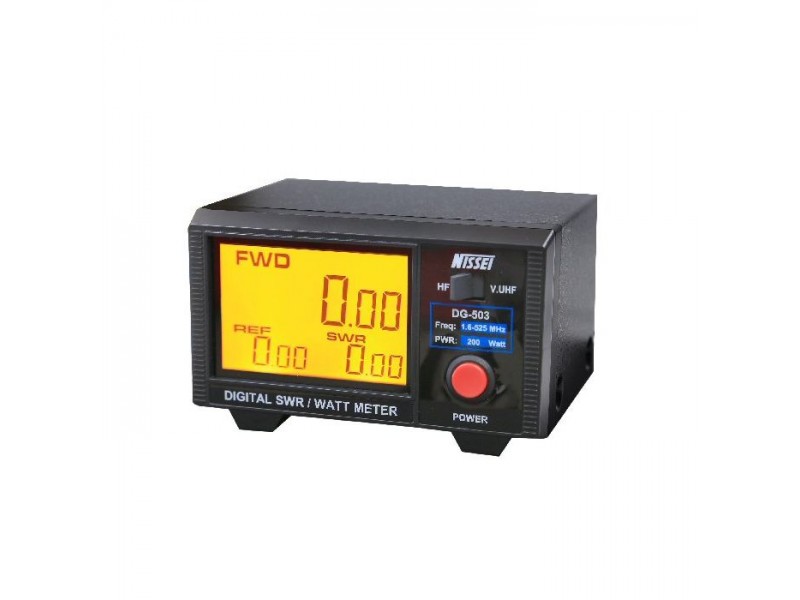

• The DG-503 works in the bands from 1.6 to 60MHz and from 125
to 525MHz, with a power from 0 to 200W, it measures and simultaneously
displays on the large 3.5 "backlit display, the forward power, the
reflected power and the SWR. It has separate inputs and outputs with
SO-239 connectors, selectable frontally, for the HF/6m band and
144/430MHzband.
• Insertion attenuation less than 0.1dB. The DG-503
is supplied with English user manual and 12Vdc power cable for display
backlighting.model RS-50 RS-70 DG-503 Power
PACKING INCLUDES:
1 Pc of Digital SWR/Watt Meter
1 Pc of 13,8 VDC Power Cable
1 Pc of user Manual in English
Digital SWR DG-503 SWR & Watt Meter
- Model: DG-503
- Beschikbaarheid: Op voorraad
-
€ 189,00
- Excl. BTW: € 156,20
Tags: DG-503
